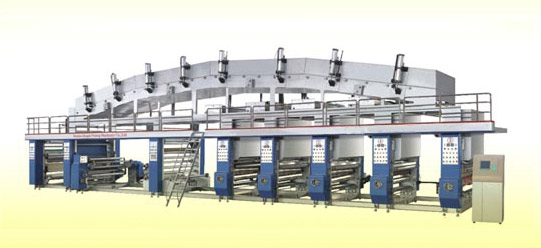

TD-QDB Model Series of Computer High Speed Printing & laminating machines

USE:
Machines in this series are suitable for continuous multicoloured printing.coating and laminating on rolling materials in good printing performance such as cellphane,BOPP,PVC,PET,PE,Aluminum foil and Paper.Also can be used for plastic printing,then transfer the designs by heating to leather.One set but many functions(make any styles as customers required.)
FEATURE:
1.Double frequency conversing synchronic timing is adopted for port main motor and laminating motor .
2.Non-shaft pneumatic conic node printing plate loading, prompt and convenient for plate changing.
3.Alloy guide rollin static balance, sealed type oven ,fast drying with less energy consuming ,and auto constant temperature control system.
4.Adopting full auto tension controller and magnetic power, magnetic clutch for unwinding and feeding drawing.
5.Pneumatic backpressure moving drawknife.
6.Printing ink circultionsystem , inflatable type shaft draw in and out.
7.High accuracy gear transmission box, adopting patented technique.
8.Lengthend oven can ensure drying inside and out, less leftover.
9.Unwingding and rewinding are both by tumbling dual-station mechanism, realizing auto material change without machine halt.
10.Full automatic computer registering devices, can choose still examining graphics .
11.The laminated roller can realizing the perfect laminating and transferring.
12.The laminated roller is heated by oil, even energy, adjustable temperature.
13.Diesel laminated system is available for stove heating, that's economic and substantial.
14.The oven can take advantages of the hot wind, that's high efficiency.
15.Pneumatic controlling is adopting for printing press roll, laminated rubber Rolland tractivepress roll.
16.Frequency timing of oven guidance ensure synchro with printing.
17.4-seciton heating in drying tunnel, possible to control temperature by segments.
